DarkPeony’s Trail: Certificate Patterns Point to Sustained Campaign Infrastructure

In a recent blog post, we discussed SSL/TLS certificates tied to suspected PlugX command and control (C2) nodes, which featured recurring use of 'AES' in the organizational unit field. Building on this, we've also identified two additional suspicious certificates on the same infrastructure linked to domains likely used to download or communicate with malware.

These findings, alongside domain registration patterns, align closely with the infrastructure previously reported by NTT as being associated with DarkPeony. The group's repeated use of similar certificates and servers indicates a sustained operational tempo, enabling us to track this cluster of activity consistently over time.

This post will explore these network observables and provide context to assist defenders in proactively identifying future infrastructure before it becomes operationalized.

DarkPeony?

DarkPeony is a suspected Chinese cyber-espionage group known for targeting government and military organizations. As highlighted in NTT's report, the group was observed deploying PlugX malware in its campaigns, targeting entities across Myanmar, the Philippines, Mongolia, and Serbia.

The group primarily leverages infrastructure providers in Hong Kong, with CTG Server Ltd. and ChangLian Network Technology Co. being the most frequently observed networks. NameCheap and NameSilo are used to register domains, while CloudFlare nameservers are employed, likely in an attempt to conceal activity from researchers.

The domain buyinginfo[.]org was listed as one of the PlugX C2 servers in the report and became our starting point for looking for similar DarkPeony infrastructure. We identified the IP address linked to the above domain as 103.107.105[.]81. As shown in Figure 1, the server uses three certificates of importance to our research:  (2) CloudFlare and (1) TrustAsia Technologies, Inc.

Checking out the details for the certificate first seen on 2024-05-24, we see a DNS name of buyinginfo[.]org and the wildcard subdomain, *.buyinginfo[.]org.

Digital Footprints: Certificate Analysis

Our blog post about PlugX from last month identified a cluster of five servers suspected to be linked with PlugX activity. Each of these servers utilized a certificate featuring the letters "AES" in the Organizational Unit field, suggesting a potential marker for the infrastructure used by this actor.

Please revisit the prior post for a more detailed examination and the Advanced Search query used. Figure 3 below shows the results of running the query at that time.

Focusing on the certificates of 96.43.101[.]248, we noticed a CloudFlare (CF) certificate we hadn't dug into previously. Using well-known services can greatly hinder analysis, allowing the infrastructure to blend in with benign servers. Techniques like these have been seen in other operations, such as those targeting government mail servers. We'll touch on a probable query that will allow us to get around this temporary roadblock later.

Interestingly, the most recent certificate (SHA-256: 130c463eefbfbdc2b33eefbfbd18efbfbd030819e3abbc08efbfbd5342efbfbd77efbfbd01efbfbd)  from the above screenshot contains the domain name vabercoach[.]com.

Clicking on the "Certificate IPs' button, we find our first pivot, a single IP address sharing this same certificate: 223.26.52[.]245.

Our investigation into vabercoach[.]com led us to various sandboxes, including VirusTotal and Hatching Triage, and sources like X/Twitter, which revealed a malicious file named 'Meeting Invitation.msc' (SHA-256: 397afb74746b2fe01abc63789412b38f44ceb234a278a04b85b2bb5b4e64cc8c) communicating with the domain.

Notably, the same file name was observed in the Operation ControlPlug campaign, as documented by NTT.

The screenshot below (Figure 7) illustrates network traffic from Hatching Triage. It shows calls to the domain's endpoint/unit and activity involving an additional domain, loginge[.]com.

Note: The domains in the above figure resolve to CloudFlare allocated network space, thus hiding the true IP address.

Before diving into the remainder of the servers linked to DarkPeony, below is a pseudo-query that may assist in identifying additional CloudFlare certificates with minimal false positives. The following criteria should serve as a starting point for analysts seeking to expand their investigation and include ASNs as they are found:

JARM Fingerprint: "2ad2ad0002ad2ad22c2ad2ad2ad2ad703dc1bf20eb9604decefea997eabff7" AND Subject Common Name:"CloudFlare Origin Certificate" AND ASN:"152194, 137443"

The above could be enhanced to include port 443, which the certificate uses almost exclusively. Keep in mind that if the actor(s) changes the port in the future, we will need to adjust accordingly.

Additional Links

We'll continue our findings by featuring the 'AES' and CloudFlare certificates and identify any domains associated with the IPs. Unfortunately, we have not found any additional malware samples communicating with or referenced by the below.

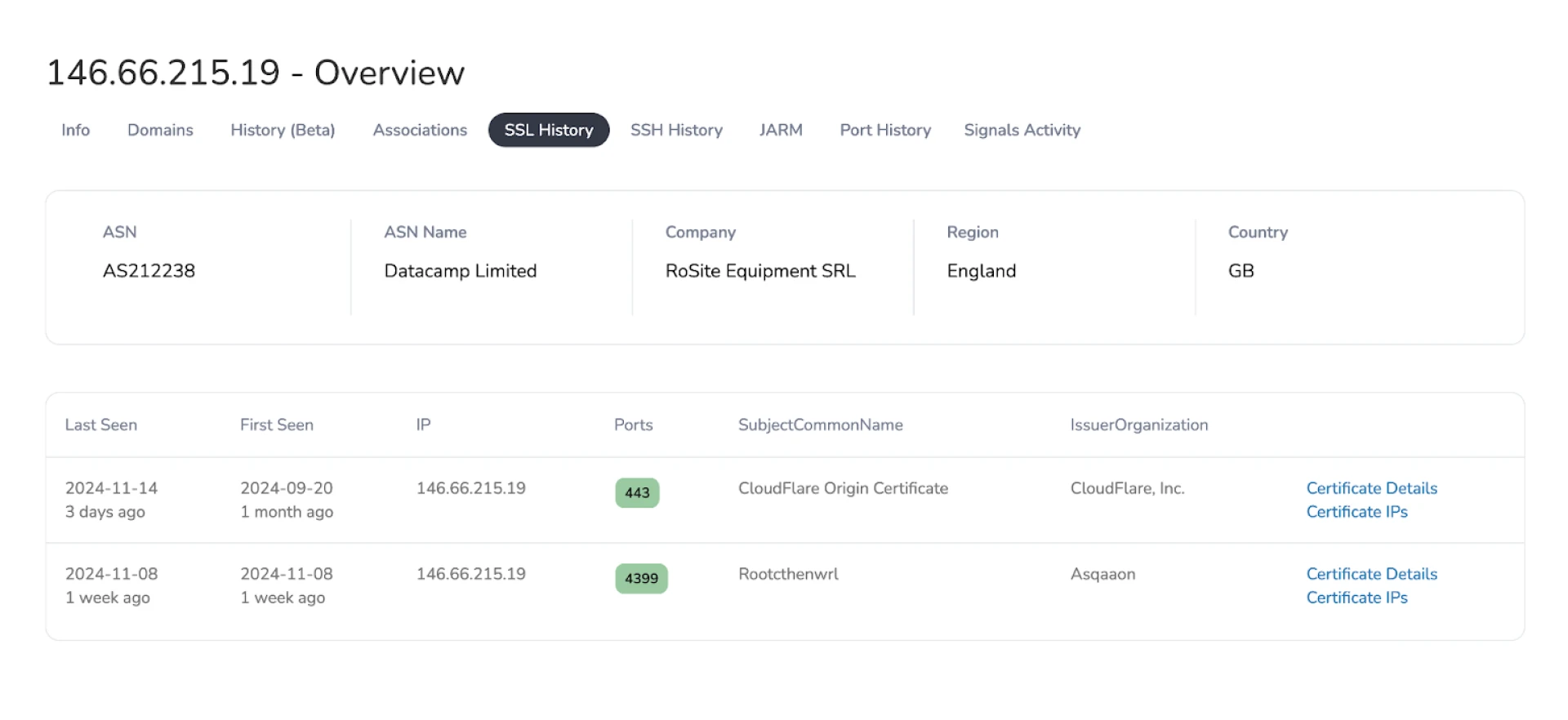

Our first server, 146.66.215[.]19 stands out as an anomaly compared to the rest of the infrastructure. This IP address is provided by Datacamp Limited, located in Great Britain. Figure 8 shows the hosted certificates.

councilofwizards[.]com is the single domain linked to this server using CloudFlare services.

45.32.105[.]184

Another server, 45.32.105[.]184, is provided by Vultr Holdings, LLC, located in Singapore. The domain associated with this CloudFlare certificate, thelocaltribe[.]com follows the same patterns noted earlier in this analysis.

Time For Something Different?

149.104.2[.]160

Hosted by XNNET LLC in Hong Kong, 149.104.2[.]160 presents a different characteristic. Unlike the previously mentioned servers, this IP does not use the 'AES' certificate but instead uses CloudFlare and another cert commonly reported as used by other threat actors to deploy malware like PlugX.

The certificate fields contain the following:

• Subject Common Name: Root CA
• Subject Country: US
• Subject Organization: TrustAsia Technologies, Inc.
• Subject Organizational Unit: Domain Validated SSL
• Subject City: Seattle
• Subject State: Washington.

Domain for CF cert on 149.104.2[.]160: smldatacenter[.]com

202.91.36[.]213

Our final IP we'll cover also uses the CF and TrustAsia certificates at 202.91.36[.]213, hosted on ChangLian Network Technology Co., Limited.

kentscaffolders[.]com is the domain linked to the CloudFlare cert on this server.

Honorable mention: Rounding out the above IPs using the CF & TrustAsia certificates is 223.26.52[.]208 on the CTG Server Limited network. The second domain seen earlier communicating with the malicious .msc file, loginge[.]com, is listed as a DNS name for the CloudFlare certificate.

Conclusion

In this post, we expanded on previously observed IPs/domains linked to DarkPeony, highlighting their continued use of certificate and domain registration practices to obfuscate malicious activity using legitimate services. The threat actor uses wildcard certificates with domains protected by CloudFlare to conceal the actual IP addresses and facilitate malware communication, effectively complicating tracking efforts.

Our focus was on the most recent IP addresses linked to this infrastructure. These elements provide valuable insights into the actor's constant operations. Security teams are encouraged to leverage these indicators to proactively hunt for emerging infrastructure as it appears, allowing for earlier detection and disruption of DarkPeony's activities.

Network Observables
